Standard Toolchain Setup for Linux and macOS

Installation Step by Step

This is a detailed roadmap to walk you through the installation process.

Setting up Development Environment

These are the steps for setting up the ROGO_ESP32_WILE_SDK for your WILE ESP32 device.

Step 1. Install Prerequisites

In order to use ROGO_ESP32_WILE_SDK with the WILE ESP32 device, you need to install some software packages based on your Operating System. This setup guide helps you on getting everything installed on Linux and macOS based systems.

For Linux Users

To compile using ROGO_ESP32_WILE_SDK, you need to get the following packages. The command to run depends on which distribution of Linux you are using:

  • Ubuntu and Debian:

    sudo apt-get install git wget flex bison gperf python3 python3-pip python3-venv cmake ninja-build ccache libffi-dev libssl-dev dfu-util libusb-1.0-0

  • CentOS 7 & 8:

    sudo yum -y update && sudo yum install git wget flex bison gperf python3 cmake ninja-build ccache dfu-util libusbx

CentOS 7 is still supported but CentOS version 8 is recommended for a better user experience.

  • Arch:

    sudo pacman -S --needed gcc git make flex bison gperf python cmake ninja ccache dfu-util libusb

Note

  • CMake version 3.16 or newer is required for use with ROGO_ESP32_WILE_SDK. Run “tools/idf_tools.py install cmake” to install a suitable version if your OS versions does not have one.

  • If you do not see your Linux distribution in the above list then please check its documentation to find out which command to use for package installation.

For macOS Users

ROGO_ESP32_WILE_SDK uses the version of Python installed by default on macOS.

  • Install CMake & Ninja build:

    • If you have HomeBrew, you can run:

      brew install cmake ninja dfu-util

    • If you have MacPorts, you can run:

      sudo port install cmake ninja dfu-util

    • Otherwise, consult the CMake and Ninja home pages for macOS installation downloads.

  • It is strongly recommended to also install ccache for faster builds. If you have HomeBrew, this can be done via brew install ccache or sudo port install ccache on MacPorts.

Note

If an error like this is shown during any step:

xcrun: error: invalid active developer path (/Library/Developer/CommandLineTools), missing xcrun at: /Library/Developer/CommandLineTools/usr/bin/xcrun

Then you need to install the XCode command line tools to continue. You can install these by running xcode-select --install.

Apple M1 Users

If you use Apple M1 platform and see an error like this:

WARNING: directory for tool xtensa-esp32-elf version esp-2021r2-patch3-8.4.0 is present, but tool was not found
ERROR: tool xtensa-esp32-elf has no installed versions. Please run 'install.sh' to install it.

or:

zsh: bad CPU type in executable: ~/.espressif/tools/xtensa-esp32-elf/esp-2021r2-patch3-8.4.0/xtensa-esp32-elf/bin/xtensa-esp32-elf-gcc

Then you need to install Apple Rosetta 2 by running

/usr/sbin/softwareupdate --install-rosetta --agree-to-license

Installing Python 3

Based on macOS Catalina 10.15 release notes, use of Python 2.7 is not recommended and Python 2.7 is not included by default in future versions of macOS. Check what Python you currently have:

python --version

If the output is like Python 2.7.17, your default interpreter is Python 2.7. If so, also check if Python 3 is not already installed on your computer:

python3 --version

If the above command returns an error, it means Python 3 is not installed.

Below is an overview of the steps to install Python 3.

  • Installing with HomeBrew can be done as follows:

    brew install python3

  • If you have MacPorts, you can run:

    sudo port install python38

Step 2. Get ROGO_ESP32_WILE_SDK

To build applications for the WILE ESP32 device, you need the software libraries in ROGO_ESP32_WILE_SDK repository.

To get ROGO_ESP32_WILE_SDK, navigate to your installation directory and clone the repository with git clone, following instructions below specific to your operating system.

Open Terminal, and run the following commands:

mkdir -p ~/esp
cd ~/esp
git clone -b dev/v5.1.1 --recursive https://github.com/RogoSolutions/rogo-esp32-sdk.git

ROGO_ESP32_WILE_SDK is downloaded into ~/esp/rogo-esp32-sdk.

Consult /versions for information about which ROGO_ESP32_WILE_SDK version to use in a given situation.

Step 3. Set up the Tools

Aside from the ROGO_ESP32_WILE_SDK, you also need to install the tools used by ROGO_ESP32_WILE_SDK, such as the compiler, debugger, Python packages, etc, for projects supporting WILE ESP32 device.

cd ~/esp/rogo-esp32-sdk
./install.sh esp32c3

or with Fish shell

cd ~/esp/rogo-esp32-sdk
./install.fish esp32c3

The above commands install tools for WILE ESP32 device with esp32c3 chip only. Currently Rogo ESP32 WILE SDK only supports ESP32C3, other ESP32 chip platform may also works but will not be guaranteed, functions wise

Note

For macOS users, if an error like this is shown during any step:

<urlopen error [SSL: CERTIFICATE_VERIFY_FAILED] certificate verify failed: unable to get local issuer certificate (_ssl.c:xxx)

You may run Install Certificates.command in the Python folder of your computer to install certificates. For details, see Download Error While Installing ROGO_ESP32_WILE_SDK Tools.

Alternative File Downloads

The tools installer downloads a number of files attached to GitHub Releases. If accessing GitHub is slow then it is possible to set an environment variable to prefer Espressif’s download server for GitHub asset downloads.

Note

This setting only controls individual tools downloaded from GitHub releases, it does not change the URLs used to access any Git repositories.

To prefer the Espressif download server when installing tools, use the following sequence of commands when running install.sh:

cd ~/esp/rogo-esp32-sdk
export IDF_GITHUB_ASSETS="dl.espressif.com/github_assets"
./install.sh

Note

For users in China, we recommend using our download server located in China for faster download speed.

cd ~/esp/rogo-esp32-sdk
export IDF_GITHUB_ASSETS="dl.espressif.cn/github_assets"
./install.sh

Customizing the Tools Installation Path

The scripts introduced in this step install compilation tools required by ROGO_ESP32_WILE_SDK inside the user home directory: $HOME/.espressif on Linux. If you wish to install the tools into a different directory, set the environment variable IDF_TOOLS_PATH before running the installation scripts. Make sure that your user account has sufficient permissions to read and write this path.

If changing the IDF_TOOLS_PATH, make sure it is set to the same value every time the Install script (install.bat, install.ps1 or install.sh) and an Export script (export.bat, export.ps1 or export.sh) are executed.

Step 4. Set up the Environment Variables

The installed tools are not yet added to the PATH environment variable. To make the tools usable from the command line, some environment variables must be set. ROGO_ESP32_WILE_SDK provides another script which does that.

In the terminal where you are going to use ROGO_ESP32_WILE_SDK, run:

. $HOME/esp/rogo-esp32-sdk/export.sh

or for fish (supported only since fish version 3.0.0):

. $HOME/esp/rogo-esp32-sdk/export.fish

Note the space between the leading dot and the path!

If you plan to use esp-idf frequently, you can create an alias for executing export.sh:

  1. Copy and paste the following command to your shell’s profile (.profile, .bashrc, .zprofile, etc.)

    alias get_idf='. $HOME/esp/rogo-esp32-sdk/export.sh'

  2. Refresh the configuration by restarting the terminal session or by running source [path to profile], for example, source ~/.bashrc.

Now you can run get_idf to set up or refresh the esp-idf environment in any terminal session.

Technically, you can add export.sh to your shell’s profile directly; however, it is not recommended. Doing so activates IDF virtual environment in every terminal session (including those where IDF is not needed), defeating the purpose of the virtual environment and likely affecting other software.

Step 5. First Steps on ROGO_ESP32_WILE_SDK

Now since all requirements are met, the next topic will guide you on how to start your first project.

This guide helps you on the first steps using ESP-IDF. Follow this guide to start a new project on the WILE ESP32 device and build, flash, and monitor the device output.

Note

If you have not yet installed ESP-IDF, please go to get-started-step-by-step and follow the instruction in order to get all the software needed to use this guide.

Start a Project

Now you are ready to prepare your application for WILE ESP32 device. You can start with :example:`get-started/hello_world` project from :idf:`examples` directory in ESP-IDF.

Important

The ESP-IDF build system does not support spaces in the paths to either ESP-IDF or to projects.

Copy the project :example:`get-started/hello_world` to ~/esp directory:

cd ~/esp
cp -r $IDF_PATH/examples/get-started/hello_world .

Note

There is a range of example projects in the :idf:`examples` directory in ESP-IDF. You can copy any project in the same way as presented above and run it. It is also possible to build examples in-place without copying them first.

Connect Your Device

Now connect your WILE ESP32 device board to the computer and check under which serial port the board is visible.

Serial ports have the following naming patterns:

  • Linux: starting with /dev/tty

  • macOS: starting with /dev/cu.

If you are not sure how to check the serial port name, please refer to establish-serial-connection for full details.

Note

Keep the port name handy as it is needed in the next steps.

Configure Your Project

Navigate to your hello_world directory, set WILE ESP32 device as the target, and run the project configuration utility menuconfig.

cd ~/esp/hello_world
idf.py set-target {IDF_TARGET_PATH_NAME}
idf.py menuconfig

After opening a new project, you should first set the target with idf.py set-target {IDF_TARGET_PATH_NAME}. Note that existing builds and configurations in the project, if any, are cleared and initialized in this process. The target may be saved in the environment variable to skip this step at all. See selecting-idf-target for additional information.

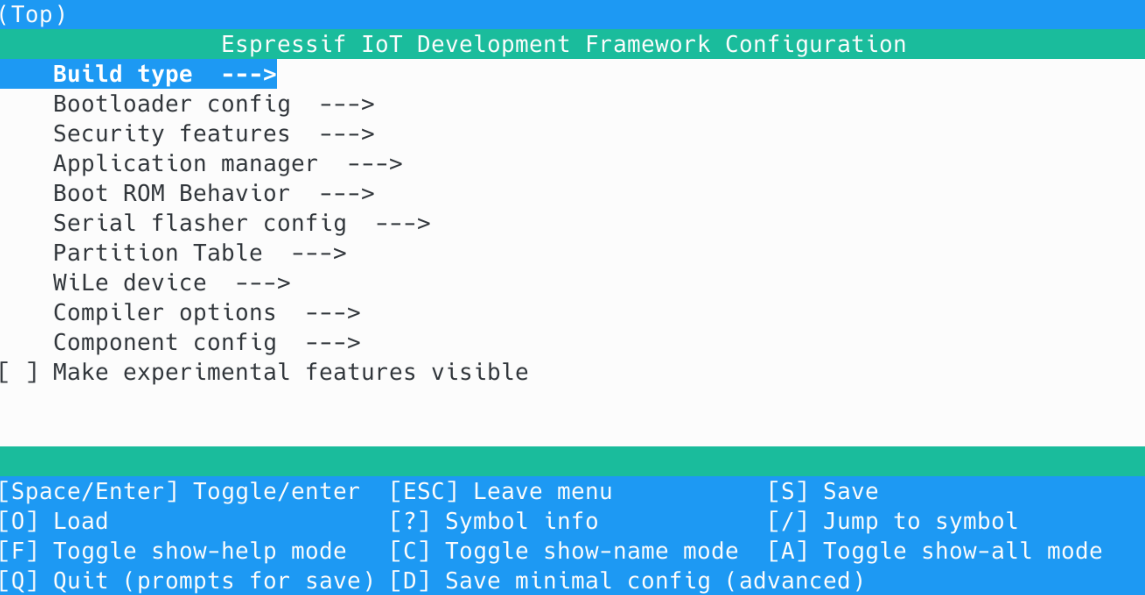

If the previous steps have been done correctly, the following menu appears:

Project configuration - Home window

Project configuration - Home window

You are using this menu to set up project specific variables, e.g., Wi-Fi network name and password, the processor speed, etc. Setting up the project with menuconfig may be skipped for “hello_world”, since this example runs with default configuration.

Note

The colors of the menu could be different in your terminal. You can change the appearance with the option --style. Please run idf.py menuconfig --help for further information.

Build the Project

Build the project by running:

idf.py build

This command compiles the application and all ESP-IDF components, then it generates the bootloader, partition table, and application binaries.

$ idf.py build
Running cmake in directory /path/to/hello_world/build
Executing "cmake -G Ninja --warn-uninitialized /path/to/hello_world"...
Warn about uninitialized values.
-- Found Git: /usr/bin/git (found version "2.17.0")
-- Building empty aws_iot component due to configuration
-- Component names: ...
-- Component paths: ...

... (more lines of build system output)

[527/527] Generating hello_world.bin
esptool.py v2.3.1

Project build complete. To flash, run this command:
../../../components/esptool_py/esptool/esptool.py -p (PORT) -b 921600 write_flash --flash_mode dio --flash_size detect --flash_freq 40m 0x10000 build/hello_world.bin  build 0x1000 build/bootloader/bootloader.bin 0x8000 build/partition_table/partition-table.bin
or run 'idf.py -p PORT flash'

If there are no errors, the build finishes by generating the firmware binary .bin files.

Flash onto the Device

To flash the binaries that you just built for the WILE ESP32 device in the previous step, you need to run the following command:

idf.py -p PORT flash

Replace PORT with your WILE ESP32 device board’s USB port name. If the PORT is not defined, the idf.py will try to connect automatically using the available USB ports.

For more information on idf.py arguments, see idf.py.

Note

The option flash automatically builds and flashes the project, so running idf.py build is not necessary.

Encountered Issues While Flashing? See the “Additional Tips” below. You can also refer to flashing-troubleshooting page or establish-serial-connection for more detailed information.

Normal Operation

When flashing, you will see the output log similar to the following:

If there are no issues by the end of the flash process, the board will reboot and start up the “hello_world” application.

If you would like to use the Eclipse or VS Code IDE instead of running idf.py, check out Eclipse Plugin, VSCode Extension.

Monitor the Output

To check if “hello_world” is indeed running, type idf.py -p PORT monitor (Do not forget to replace PORT with your serial port name).

This command launches the IDF Monitor application:

$ idf.py -p <PORT> monitor
Running idf_monitor in directory [...]/esp/hello_world/build
Executing "python [...]/esp-idf/tools/idf_monitor.py -b 115200 [...]/esp/hello_world/build/hello_world.elf"...
--- idf_monitor on <PORT> 115200 ---
--- Quit: Ctrl+] | Menu: Ctrl+T | Help: Ctrl+T followed by Ctrl+H ---
ets Jun  8 2016 00:22:57

rst:0x1 (POWERON_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
ets Jun  8 2016 00:22:57
...

After startup and diagnostic logs scroll up, you should see “Hello world!” printed out by the application.

    ...
    Hello world!
    Restarting in 10 seconds...
    This is {IDF_TARGET_PATH_NAME} chip with {IDF_TARGET_SOC_CPU_CORES_NUM} CPU core(s), {IDF_TARGET_FEATURES}
Minimum free heap size: {IDF_TARGET_HEAP_SIZE} bytes
    Restarting in 9 seconds...
    Restarting in 8 seconds...
    Restarting in 7 seconds...

To exit IDF monitor use the shortcut Ctrl+].

Note

You can combine building, flashing and monitoring into one step by running:

idf.py -p PORT flash monitor

See also:

  • IDF Monitor for handy shortcuts and more details on using IDF monitor.

  • idf.py for a full reference of idf.py commands and options.

That is all that you need to get started with |IDF_TARGET_NAME| !

Now you are ready to try some other :idf:`examples`, or go straight to developing your own applications.

Important

Some of examples do not support WILE ESP32 device because required hardware is not included in WILE ESP32 device so it cannot be supported.

If building an example, please check the README file for the Supported Targets table. If this is present including WILE ESP32 device target, or the table does not exist at all, the example will work on WILE ESP32 device.

Additional Tips

Permission Denied Issue

With some Linux distributions, you may get the error message similar to Could not open port <PORT>: Permission denied: '<PORT>' when flashing the WILE ESP32 device. This can be solved by adding the current user to the specific group, such as dialout or uucp group.

Python Compatibility

ESP-IDF supports Python 3.8 or newer. It is recommended to upgrade your operating system to a recent version satisfying this requirement. Other options include the installation of Python from sources or the use of a Python version management system such as pyenv.

Flash Erase

Erasing the flash is also possible. To erase the entire flash memory you can run the following command:

idf.py -p PORT erase-flash

For erasing the OTA data, if present, you can run this command:

idf.py -p PORT erase-otadata

The flash erase command can take a while to be done. Do not disconnect your device while the flash erasing is in progress.
